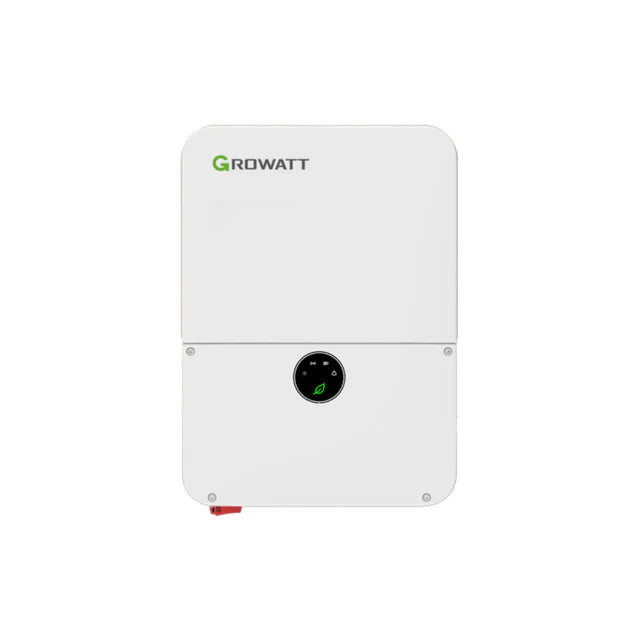

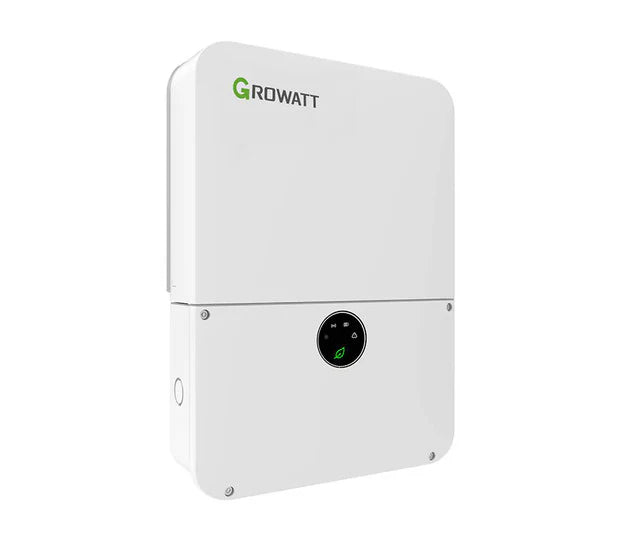

10kW Grid-Tie Inverter by Growatt

The 10kW Grid-Tie Inverter by Growatt offers exceptional performance for large-scale residential or commercial solar setups. Equipped with four MPP trackers, the Growatt grid-tie inverter ensures maximum energy harvest from multi-array installations, even in shaded areas. Its durable NEMA4X-rated enclosure allows reliable operation in harsh outdoor environments.

Advanced IoT integration helps users maintain optimal system performance with hassle-free monitoring and management through intuitive apps. The 10kW Grid-Tie Inverter by Growatt is a top-tier solution for those seeking efficiency, safety, and scalability.

View/Download Growatt Inverter Documents:

Spec Sheet | Manual | Quick Guide | Certificate

Growatt 10kW Grid-Tie Inverter Features:

Cutting-Edge Grid-Tie:

• 10000W Nominal Output
• High 550 VDC Input (12000W Max PV!)
• 4 MPP Trackers, 2 Strings Per MPP Tracker
• Up to 98.5% Efficiency

Quality Design:

• 13°F to +140°F Operating Temperature
• Natural Convection Cooling
• NEMA4X (IP65) Rated
• 'Aerospace Grade' Flame-Retardant Lightweight Materials


Communication:

• Built-in 4G/Wi-Fi Communication with APP
• IoT integrated Cloud and Monitoring
• IOS, Android, & Windows Apps


Advanced Protection & Safety:

• UL Certified (1741)
• Type III AC Surge Protection
• AC Short Circuit Protection
• Ground Fault & Grid Monitoring
• AFCI Protection
• Rapid Shutdown Capable, RFCI Protection
• Anti-Islanding Protection
• Residual-Current Monitoring


Rated Output Power: 10000W

Max PV Input: 20000W

Max MPPT Operating Voltage: 550V

Max Output Current: 42A

Also Available in 6kW and 11.4kW.
